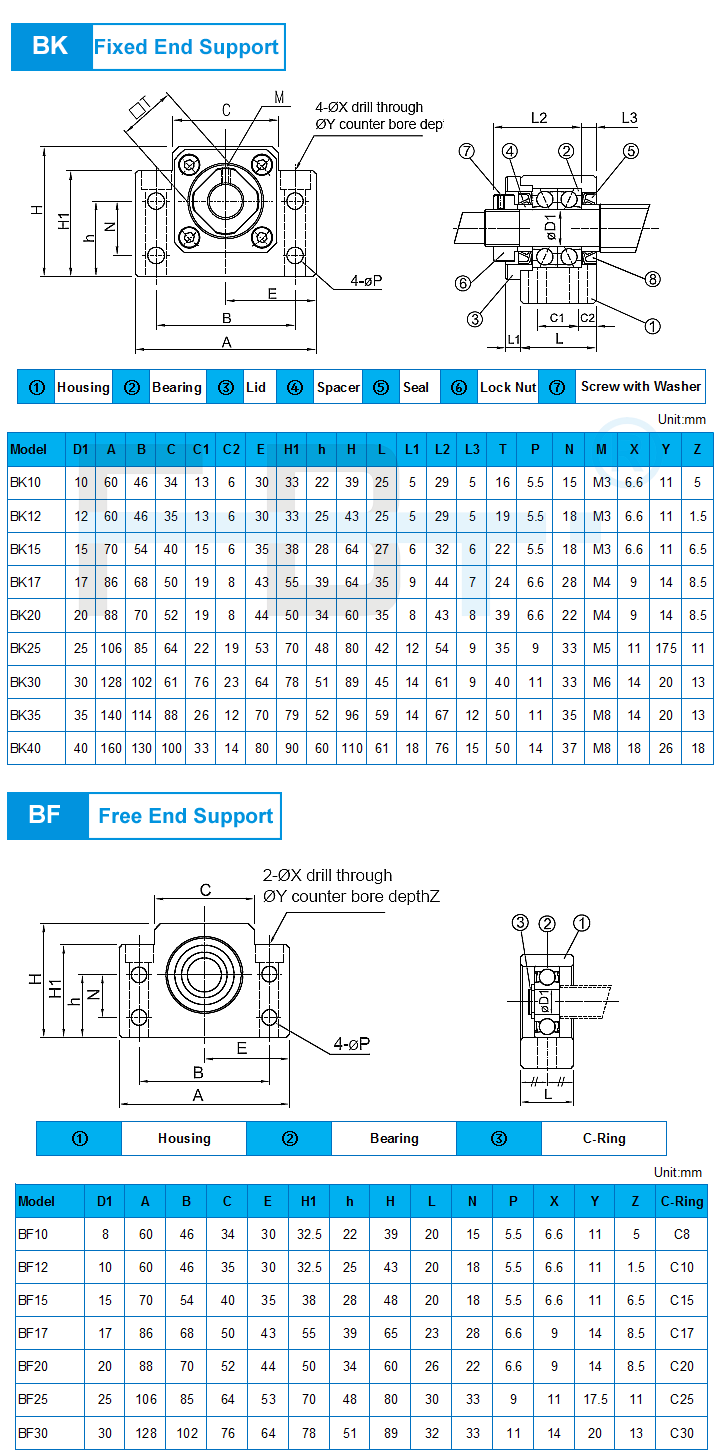

FBT Support units are composed of a bearing housing,bearing,holding lid,seal,lock nut and set screws.The support unit can be used on Fixed and supported ends for the ballscrew,which mounts the ballscrew in the desired position.
FBT BK Fixed End Support are comes with P5 Angular Contact Bearing,there is preload between 2 bearings to avoid the movement of the ballscrew and backlash from the machine.
Chinese Manufacture / Fabricante / Produttore / Herstelller for AK Ballscrew Fixed End Support and AF Free End Support in full model,which included:
BK10/BF10 BK12/BF12 BK15/BF15 BK17/BF17
BK20/BF20 BK25/BF25 BK30/BF30 BK35/BF35 BK40/BF40
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||
