FBT Support units are composed of a bearing housing,bearing,holding lid,seal,lock nut and set screws.The support unit can be used on Fixed and supported ends for the ballscrew,which mounts the ballscrew in the desired position.

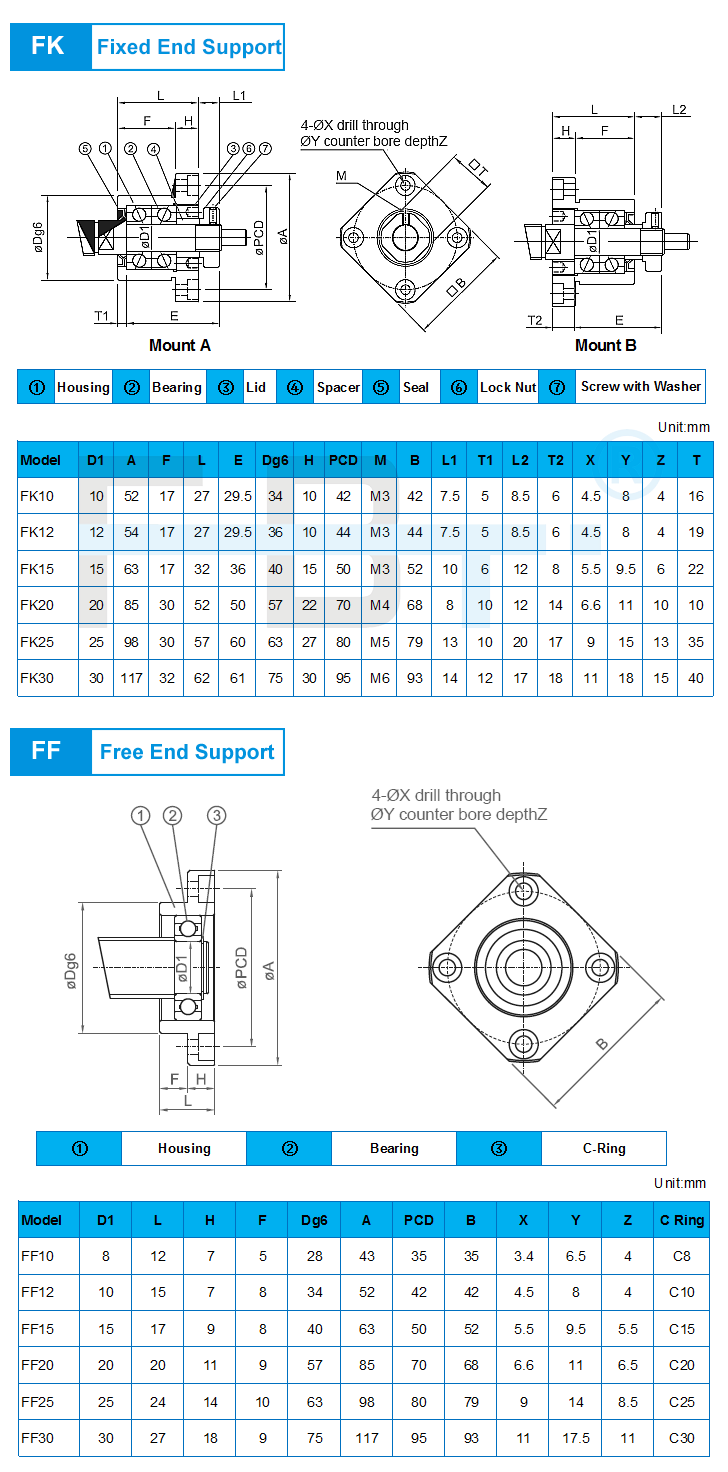

FBT FK Fixed End Support are comes with P5 Angular Contact Bearing,there is preload between 2 bearings to avoid the movement of the ballscrew and backlash from the machine.
Chinese Manufacture / Fabricante / Produttore / Herstelller for AK Ballscrew Fixed End Support and AF Free End Support in full model,which included:
FK10/FF10 FK12/FF12 FK15/FF15
FK20/FF20 FK25/FF25 FK30/FF30
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||
